Equipment introduction
This model is the basic configuration of a complex die casting deburring machine. The robot polishing room ensures safe operation and no dust is discharged during polishing. The material box is equipped with AB alternating loading and unloading equipment that does not stop. The polishing worktable is equipped with multiple floating spindles and sand belt polishing spindles. The equipment is equipped with a safety door, electromagnetic safety protection switch, and communicates with the whole machine PLC to ensure personnel operation safety. The polishing room is equipped with high-power lighting to ensure visibility. The Fanuc six axis robot is stable and reliable, with high polishing accuracy and good flexibility.
Advantage
● The equipment has good polishing flexibility and a wide processing range
● Advanced technology, deburring of complex structural components
● Mature technology and high cost-effectiveness
● Excellent manufacturing process and good stability
Technical Parameter
| Model | PMR12-R/L | PMR20-R/L | PMR35-R/L |
| Dimensions | 3000mm×2100mm×2100mm | 3800mm×2500mm×2600mm | 4300mm×2800mm×3200mm |
| Working Environment | 0℃-55℃ | 0℃-55℃ | 0℃-55℃ |
| Power Supply Votage | 380±10%VAC | 380±10%VAC | 380±10%VAC |
| Power Supply Frequency | 50Hz | 50Hz | 50Hz |
| Total Power | 8Kw | 18Kw | 22Kw |
| Total Machine Weight | 3000KG | 5000KG | 6000KG |
| Robotic Carry Load | 12KG | 20KG | 35KG |
| Workpiece Material | Aluminum castings/cast iron/steel parts | Aluminum castings/cast iron/steel parts | Aluminum castings/cast iron/steel parts |
| Robot Brand | FANUC six-axis articulated robot | FANUC six-axis articulated robot | FANUC six-axis articulated robot |
| Max Workpiece info | Product size：150*150*150 Product Weight：No more than5KG |
Product size：300*300*100 Product Weight：No more than12KG |
Product size：350*350*150 Product Weight：No more than25KG |
| Grinding Accuracy | 0.1mm | 0.1mm | 0.1mm |

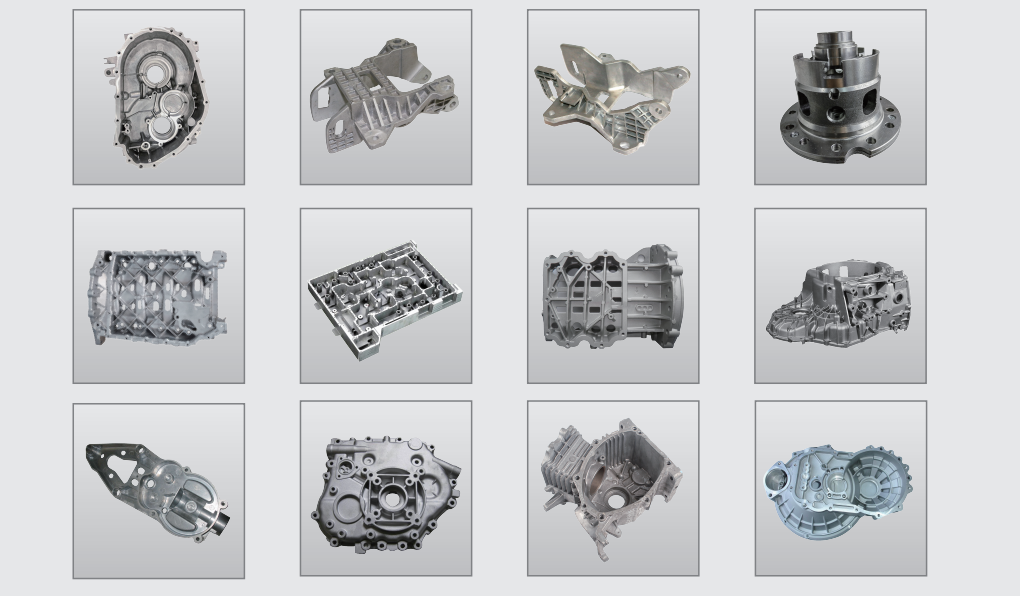

Suitable for processing parts
