■ Equipment Introduction
This equipment is specifically designed for deburring and polishing the inner and outer surfaces of various components, such as gears, short shafts, and discs. These parts often present multiple burrs that are difficult to remove using conventional methods. The machine employs flow wet abrasive high-speed motion to selectively remove burrs and utilizes flow rate polishing and pulse technology for efficient and versatile surface finishing. To enhance productivity, the deburring power head can operate across up to 10 stations simultaneously, with each station independently controlled, catering to high-efficiency production modes like precision punching. Users can opt for manual loading/unloading or robotic automation, depending on their needs.
■ Advantages
- Innovative Technology: Incorporates advanced flow rate polishing and pulse technology for precise and effective deburring.
- Efficient Surface Treatment: Combines high-speed abrasive rotation with part self-rotation, delivering micro-grinding and polishing.
- Wide Applicability: Supports a broad range of parts without the need for specialized fixtures.
- High Automation: Fully monitored processing with optional robotic integration for automation.
- Cost-Effective Solution: Offers performance comparable to imported systems at a significantly lower cost.
This equipment delivers a reliable and efficient solution for handling challenging deburring and polishing tasks, ideal for high-precision and high-efficiency manufacturing environments.
■ Technical parameters
| Index | Parameter |
| Dimensions | 5600mm×4500mm×2500mm |
| Diameterofabrasive barrel | φ2500 mm |
|
Workpiece Diameter |
φ200 mm |
| Workpiece Length | 200 mm |
| Maximum Weigth Of Workpiece | 4 Kg |
| Total Power | 100KW |
| Swing Angle | ±30℃ |
|
Power SupplyVoltage |
380±10%V |
|
Power Supply Frequenc |
50 Hz |
| Working Temperature | 0℃~55℃ |

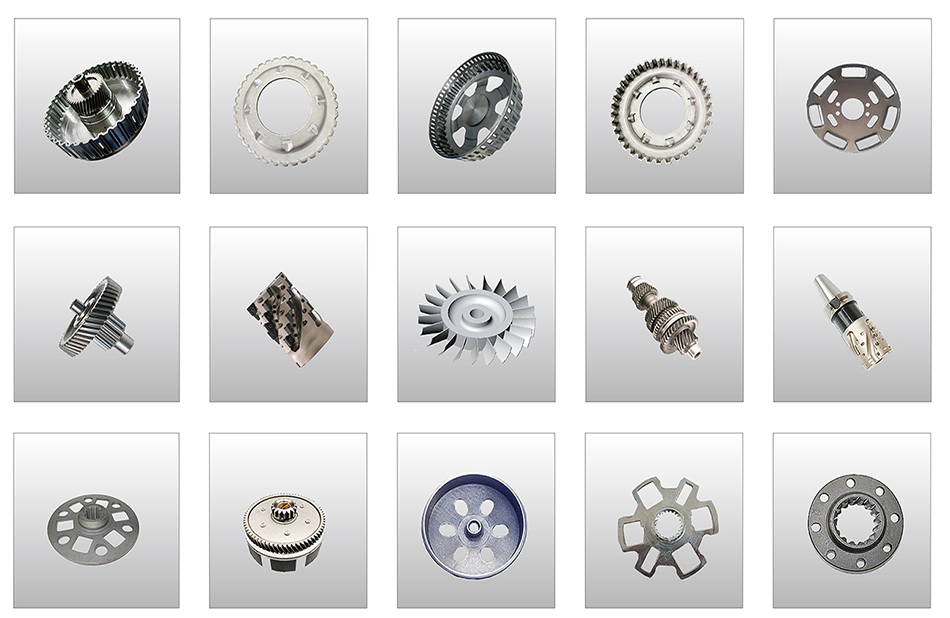

■ Suitable for processing parts
Keywords: Piston ring deburring and polishing equipment
Piston ring deburring and polishing equipment
